Housing Mount Extender
When wall-mounted deployment is the right answer, the housing mount extender keeps the installation clean, stable, and aligned with the intended fog trajectory.
It gives installers a dedicated bracket instead of forcing improvised field work.
How is the Housing Mount extender mounted?

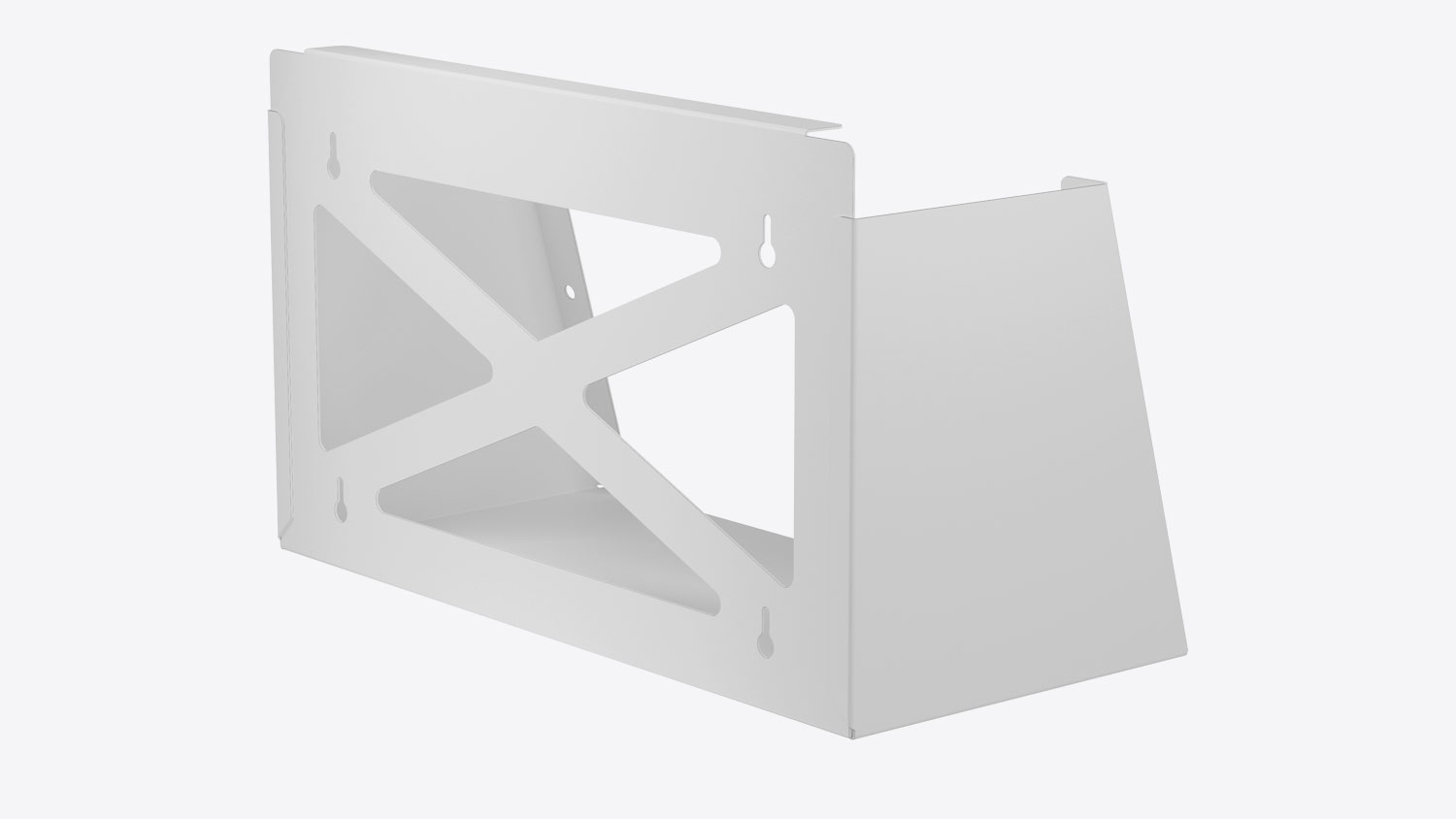

Anchoring to the wall
By simply marking the ideal position on the wall, the bracket can be installed using suitable anchors and screws.
Which systems can be mounted in this way?

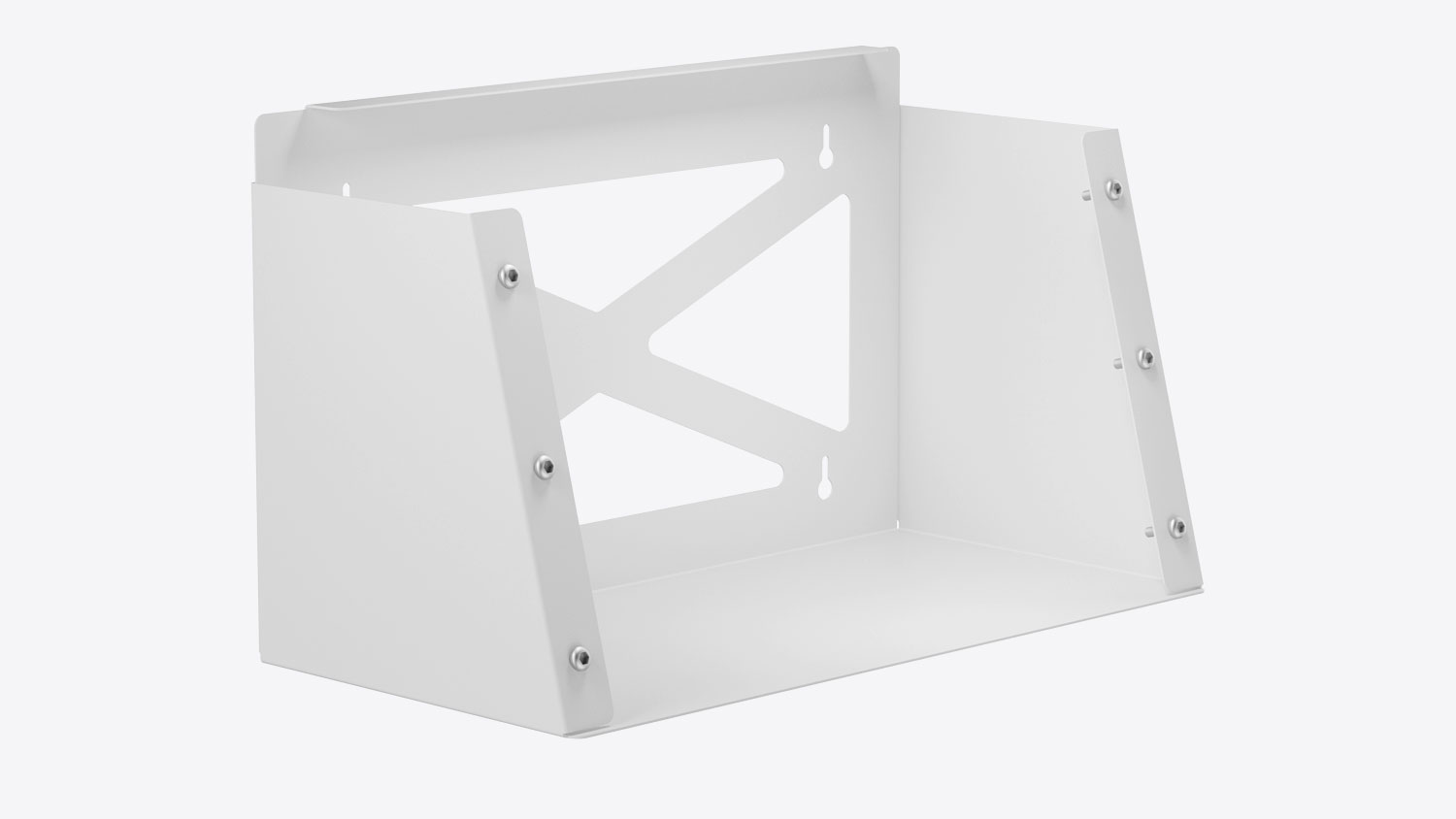

Universal bracket for both small and large housing mounts
Once the Housing Mount extender has been installed, the housing mount is secured on to the extender using six bolts supplied.
Each Housing Mount is factory-prepared with openings designed specifically for wall-mount installation.
At what height should the bracket be mounted?
2.4 - 3.6 meters
To achieve maximum system performance, the installation height must be within the prescribed range, regardless of the mounting type.
Tilt angle ensures optimal performance
15° tilt angle
In order to ensure maximum efficiency during wall-mounted installation, the system is designed with a 15° tilt angle.
This prevents the smoke curtain from being emitted directly along the wall, directing it instead at an angle into the protected area, thereby filling the space faster and more effectively.
System installation without ceiling mount with maximum performance
