Security fog systems built for rapid-loss events (smash-and-grab, break-ins, organized retail crime)

Phantom Fog Technologies

IRMD

Immediate Repeatable Multiple Deployment. Most Potent in its Class. This Technology Doesn’t Just Detect Threats…It Ends Them Instantly.

Phantom Fog Technologies

CPM Liquid

CPM (Compressed Particle Module)
Dense particulate security fog that rapidly reduces visibility to deter intruders. Within moments, the perpetrators are overwhelmed, disoriented, and forced to retreat.

Phantom Fog Technologies

Modular

Immediate Repeatable Multiple Deployment. Most Potent in its Class. This Technology Doesn’t Just Detect Threats…It Ends Them Instantly.

Phantom Fog Technologies

ECOSYSTEM

Warrant for use in all Environments. Ecosystem friendly, MSDS, Harmless to Humans and Animals, Non-Toxic, Non-Greasy Solution.

Professional Security Fog Systems

Every business has unique security demands, and Phantom Fog Technologies is equipped to customize fog systems that address your specific needs. Which system do I need? Depends of the room size. We have system for any size.

YOUR QUESTIONS COVERED

E200CPM MCU


The Enforcer Systems E200CPM range are essential components of any alarm system.
The CPM units are a hard-wired, powerful and an effective method of properly protecting your assets.
Once the unit triggers, the Enforcer Systems E200CPM will obscure vision, repel intruders and protect
your valuable assets with its dense emission.

Phantom Fog Technologies

Compressed Particle Module System

Low-cost replacement cartridges

The Enforcer Systems E200CPM range utilises a new technology, Compressed Particle Module which burns at a high rate to ensure loss of visibility in the protected area. This technology consists of compressed food grade powders within a compact metal Cartridge.

Dedicated Motion Device

The Enforcer Systems E200CPM range contains a 360 degree Motion Sensor within the unit.

The motion detector has a unique and durable spherical lens that can provide 360 degree detection from the installation point. It has a temperature compensation and anti-photometric detection circuit.

Benefits

  • 2 x modes (normal running and service)
  • 6 x custom dip switch settings for scalable solutions
  • 4 x high current main outputs (Max Peak: 5A each)
  • 3 x high current sub outputs (Max Peak: 5A each)
  • Multiple flexible inputs (primary-trigger, Arm, Sec-trigger1, Sec-trigger2)
  • Supervision on-board (Tamper, Service, Trouble) Visual & Audible output (Strobe/Siren)
  • Dedicated systems outputs on-board (System On, System Activation, System Armed, Service), Service reset switch (Built-in)
  • Duress/Panic (Double poll terminals), 24 Hour
  • International Standards/Approvals (RoHS, ЯU, CЄ, ISO 9000)

Microcontroller Unit

  • High performance Arm®, Cortex® – MO+ 32-bit RISC core Operating at up to 64 MHz Frequency. This is a high level integration MCU that incorporates a memory protection unit (MPU), high speed embedded memories for flash and SRAM.
  • Low power consumption device
  • Communication interface on board
  • 7 Channel DMA controller with mapping
  • 12-bit, ADC (up to 16 external channels)
  • Up to 59 fast I/Os
  • Clock management
  • 2 watchdogs

E200CPM
Your own personal guard
anytime, anywhere

Phantom Fog Technologies

Housing Features:

Compact by design / Strong Metal Housing
Modular designed for fast installation / Powder Coated for durability
Lightweight design / Multiple mounting solutions / Off-white in color

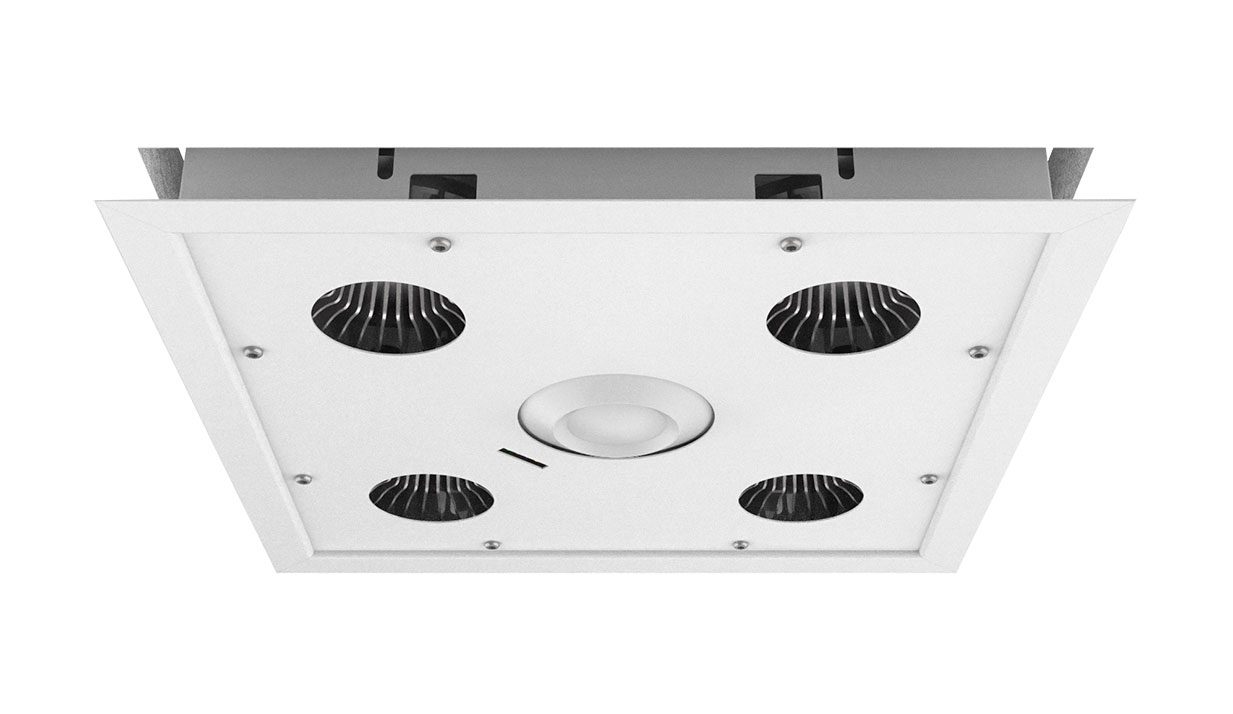

E400CPM/MCU


The Enforcer Systems E400CPM range are essential components of any alarm system.
The CPM units are a hard-wired, powerful and an effective method of properly protecting your assets.
Once the unit triggers, the Enforcer Systems E400CPM will obscure vision, repel intruders and protect
your valuable assets with its dense emission.

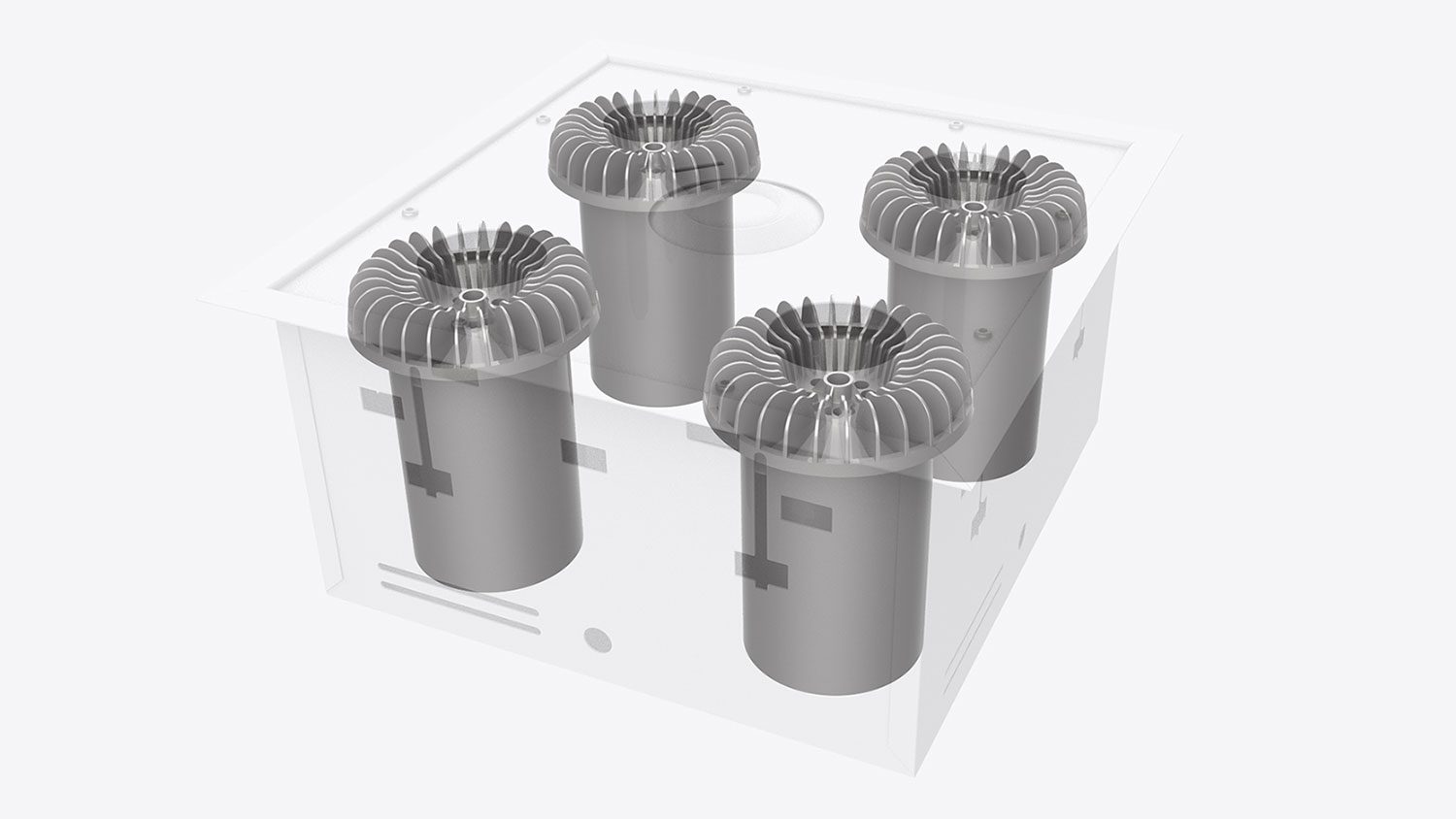

E400CPM-MCU-Transparent

Compressed Particle Module System

Low-cost replacement cartridges

The Enforcer Systems E400CPM range utilises a new technology, Compressed Particle Module which burns at a high rate to ensure loss of visibility in the protected area. This technology consists of compressed food grade powders within a compact metal Cartridge.

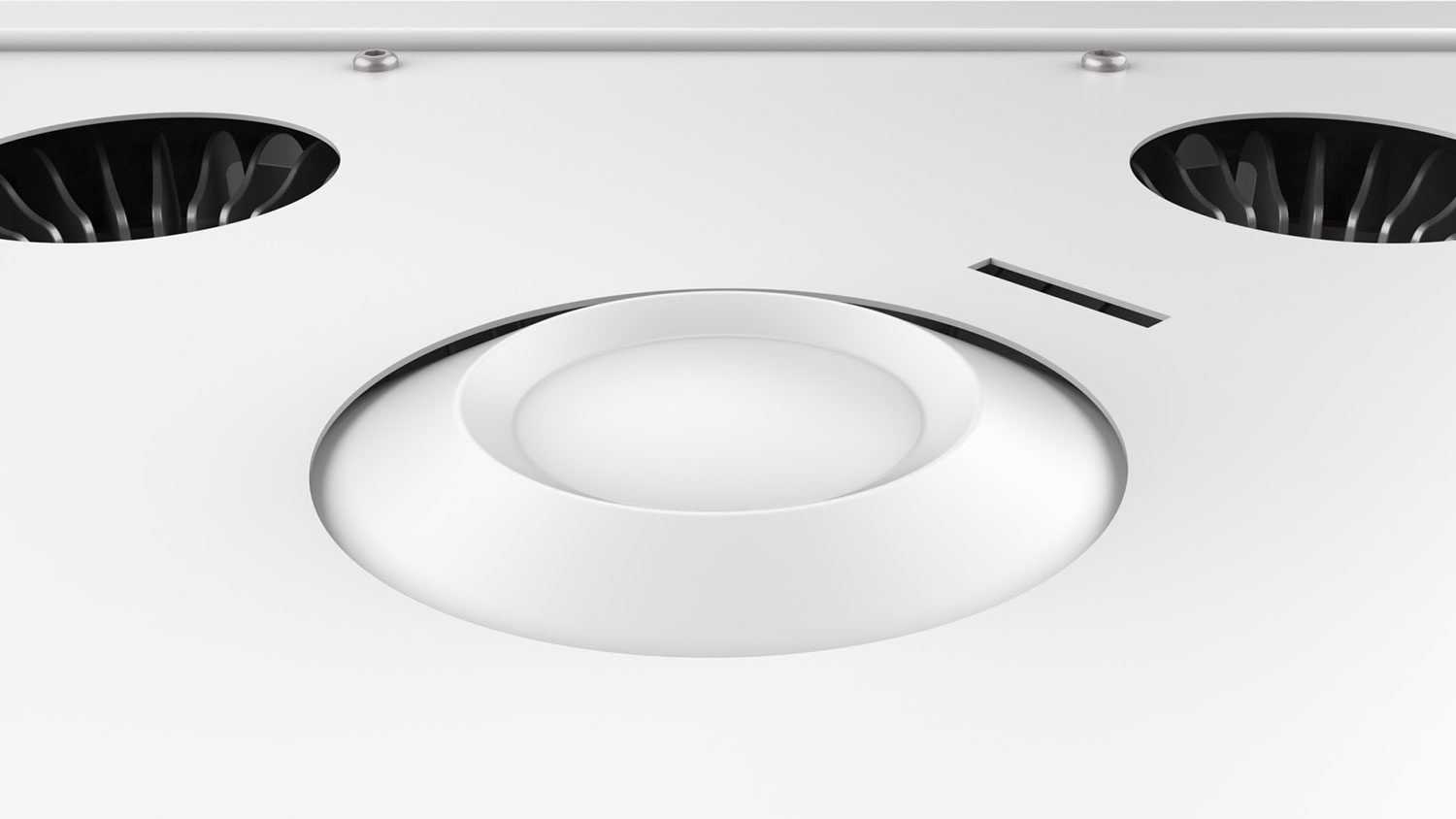

Dedicated Motion Device

The Enforcer Systems E400CPM range contains a 360 degree Motion Sensor within the unit.

The motion detector has a unique and durable spherical lens that can provide 360 degree detection from the installation point. It has a temperature compensation and anti-photometric detection circuit.



Benefits

  • 2 x modes (normal running and service)
  • 6 x custom dip switch settings for scalable solutions
  • 4 x high current main outputs (Max Peak: 5A each)
  • 3 x high current sub outputs (Max Peak: 5A each)
  • Multiple flexible inputs (primary-trigger, Arm, Sec-trigger1, Sec-trigger2)
  • Supervision on-board (Tamper, Service, Trouble) Visual & Audible output (Strobe/Siren)
  • Dedicated systems outputs on-board (System On, System Activation, System Armed, Service), Service reset switch (Built-in)
  • Duress/Panic (Double poll terminals), 24 Hour
  • International Standards/Approvals (RoHS, ЯU, CЄ, ISO 9000)

Microcontroller Unit

  • High performance Arm®, Cortex® – MO+ 32-bit RISC core Operating at up to 64 MHz Frequency.
    This is a high level integration MCU that incorporates a memory protection unit (MPU), high speed embedded memories for flash and SRAM.
  • Low power consumption device
  • Communication interface on board
  • 7 Channel DMA controller with mapping
  • 12-bit, ADC (up to 16 external channels)
  • Up to 59 fast I/Os
  • Clock management
  • 2 watchdogs

E400CPM
Your own personal guard
anytime, anywhere

EnforcerSystems-Maticna-ploca-final

Housing Features:

Compact by design / Strong Metal Housing
Modular designed for fast installation / Powder Coated for durability
Lightweight design / Multiple mounting solutions / Off-white in color

Black Box Elite

The Enforcer Systems Black Box Elite is an intelligent security system, reliable in protecting against burglaries and robberies, which completely replaces physical security, monitors circumstances and reacts as needed, creating a powerful and effective smoke screen.

Play Video
Phantom Fog Technologies

Camera

Dahua 4MP dome fixed 2.8mm, wizsense starlight

Installed on the top of the Enforcer Systems Black Box Elite series, there is a 4MP Fixed Starlight Dome to allow the user to have live feed footage at any time of the day or night. With an IR distance of 50 meters, most environments will be covered for viewing.

Phantom Fog Technologies

Portable Mobile Unit

Height: 595mm / Width: 352mm / Depth: 232mm / Weight: 23.20Kg

The Enforcer Systems Black Box Elite is a mobile unit and can be transported to any location. The only requirement is that it requires a 240v connection. The Black Box has a battery back-up system to last up to 24 hours without 240v connection.

Phantom Fog Technologies

Camera

This Black Box Elite camera has AI capabilities and the SMD functions filters out irrelevant objects in the scene. The algorithm that the new camera is equipped with, allows it to filter out small and large animals in the scene to avoid triggering false alarms. As the cameras supports AI intelligent features, it can support perimeter protection and smart motion detection which you can set up a trip wire and intrusions straight to your mobile phone.

The Starlight technology allows it to generate clear images in near-complete darkness. An incredibly high performance sensor and special algorithms work together to capture images in very low light and no-light environments.

Dedicated Motion Devices

Enforcer Systems Australia has used the Swan Quad motion detectors which have a special designed optical lens with unique Quad (Four element) PIR Sensor. This ASIC based electronic is used to eliminate all false alarms caused by very small animals, rodents and pets.

Phantom Fog Technologies

Compressed Particle Module System

Our Enforcer Systems Black Box Elite series uses a new technology called Compressed Particle Module which burns at a high rate to ensure loss of visibility in the protected area. This technology consists of compressed food grade powders within a compact metal Cartridge. When triggered, the content powder will burn in a very efficient manner.

The CPM cartridge burns within 12 seconds and can produce an unpleasant smell to force intruders out of the affected area. The Compressed Particle Cartridges are a new technology to protect your valuable assets compared to a standard Alarm or CCTV system. The dense cloud particulate will remain in the air in order to prevent visibility for approximately 30-45 minutes per activation.

PCB

MICRO CONTROLLER UNIT

• High Performance Arm®, Cortex® – MO+ 32-bit RISC core operating at up to 64 MHz Frequency. This is a high level integration MCU that incorporates a memory protection unit (MPU), high speed embedded memories for flash and SRAM.

Black Box Elite Your own personal guard

anytime, anywhere


Disarm Arm

Temporary to Permanent
Security System

This unit can be placed to protect a wide range of assets. From a permanent security system to a temporary solution.

The mobile unit can cover home building construction sites, commercial construction indoor areas, storage containers, literally any asset that is temporarily exposed to vandalism or burglary.

Phantom Fog Technologies

Specifications:

• Height: 595mm
• Width: 352mm
• Depth: 232mm
• Weight: 23.20Kg
